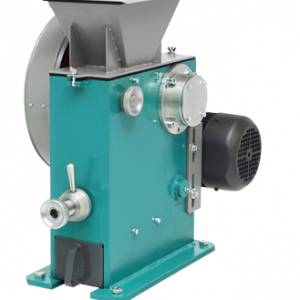

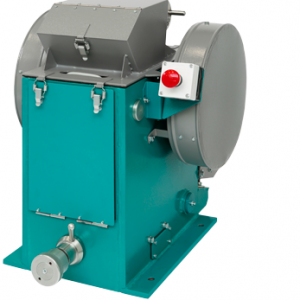

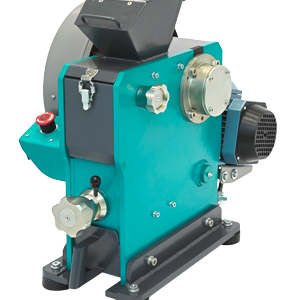

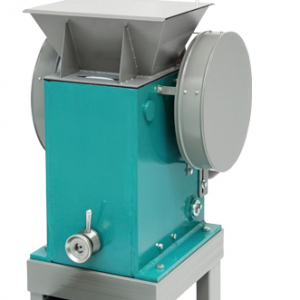

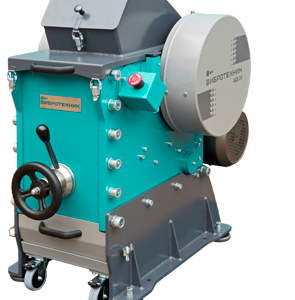

The jaw crushers are designed to crush brittle bulk materials of various strength and hardness.

In the jaw crushers, the material particles are broken down by the compressive and shear strains between the fixed and moving jaws.

The grain size of the crushed material is determined by the gap between the jaws in the lower part (the discharge slot) and the physical properties of the material.



Advantages of VIBROTECHNIK Jaw crushers:

  • The complex movement of the jaw (primarily horizontal vibrations in the upper part of the crushing zone and vertical vibrations in the lower part) provides a high degree of crushing;
  • The walls of the housing in the crushing zone are protected by durable steel liners;
  • The interchangeability of the fixed and moving jaws increases their service life;
  • The configuration of the loading hopper and cover and the connection to a dust removal system prevent crushed material from being ejected and reduce dust;
  • There is a hinged (removable) loading hopper for easy cleaning of the crushing chamber and monitoring of the gap between the jaws;
  • The attachment of the jaw wedges to the ends of the base and the crank arm prevents damage to the attachment, allowing the jaws to be easily replaced;
  • Easy adjustment of the V-belt drive by a rotating slide plate;
  • Housings, limit microswitches and an emergency stop button ensure limited access to the drive parts of the crusher and safe operation;
  • The use of a large-diameter support thread in the adjustment device reduces the likelihood of it jamming;
  • Patented designs. Patent for utility model No. 159277 of September 24, 2015

Applications: ferroalloys, ore, slag, granite, marble, limestone, coal, coke, glass, ceramics, opal.

Industries: mining, metallurgy, construction, chemical, pharmaceutical.

Showing all 5 results
